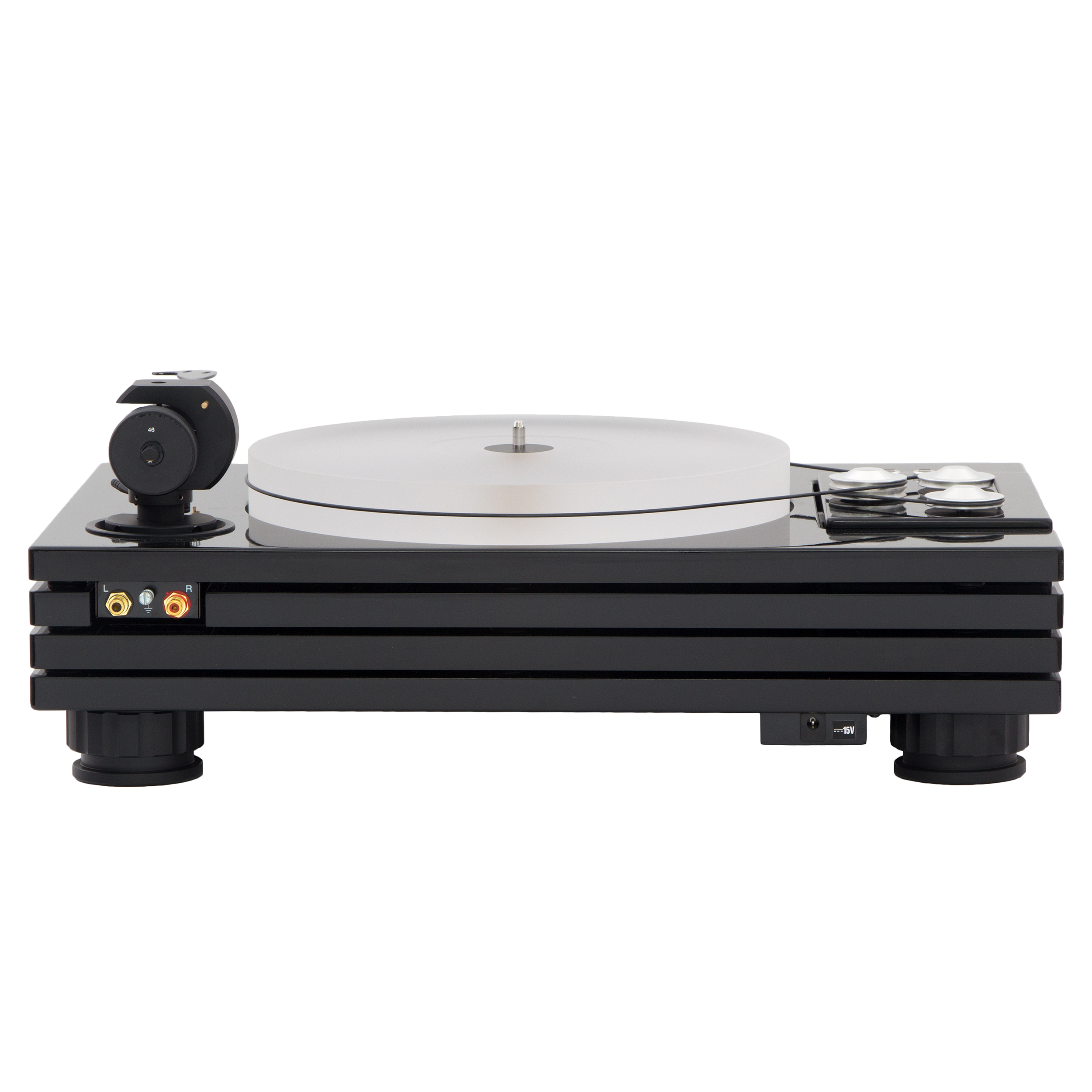

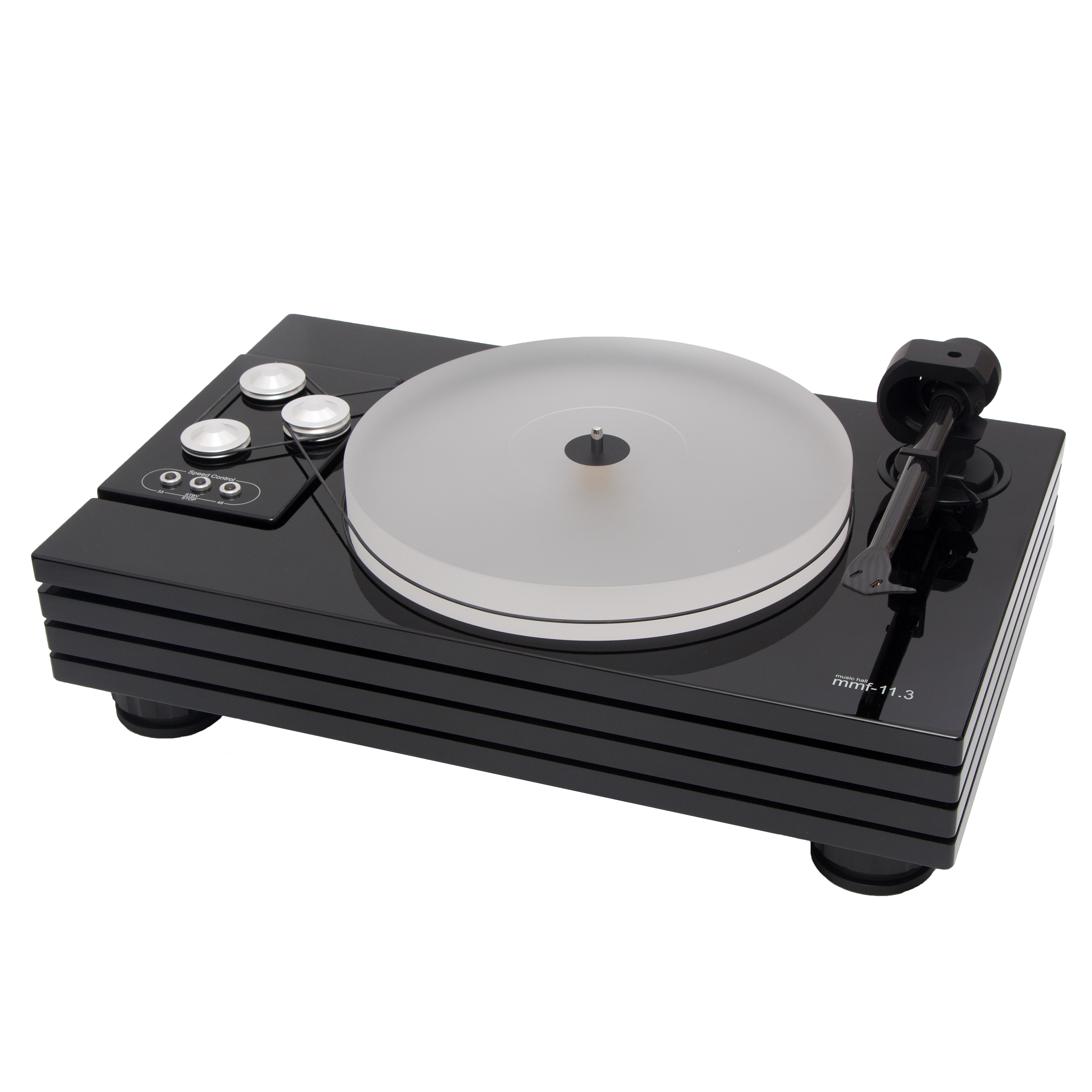

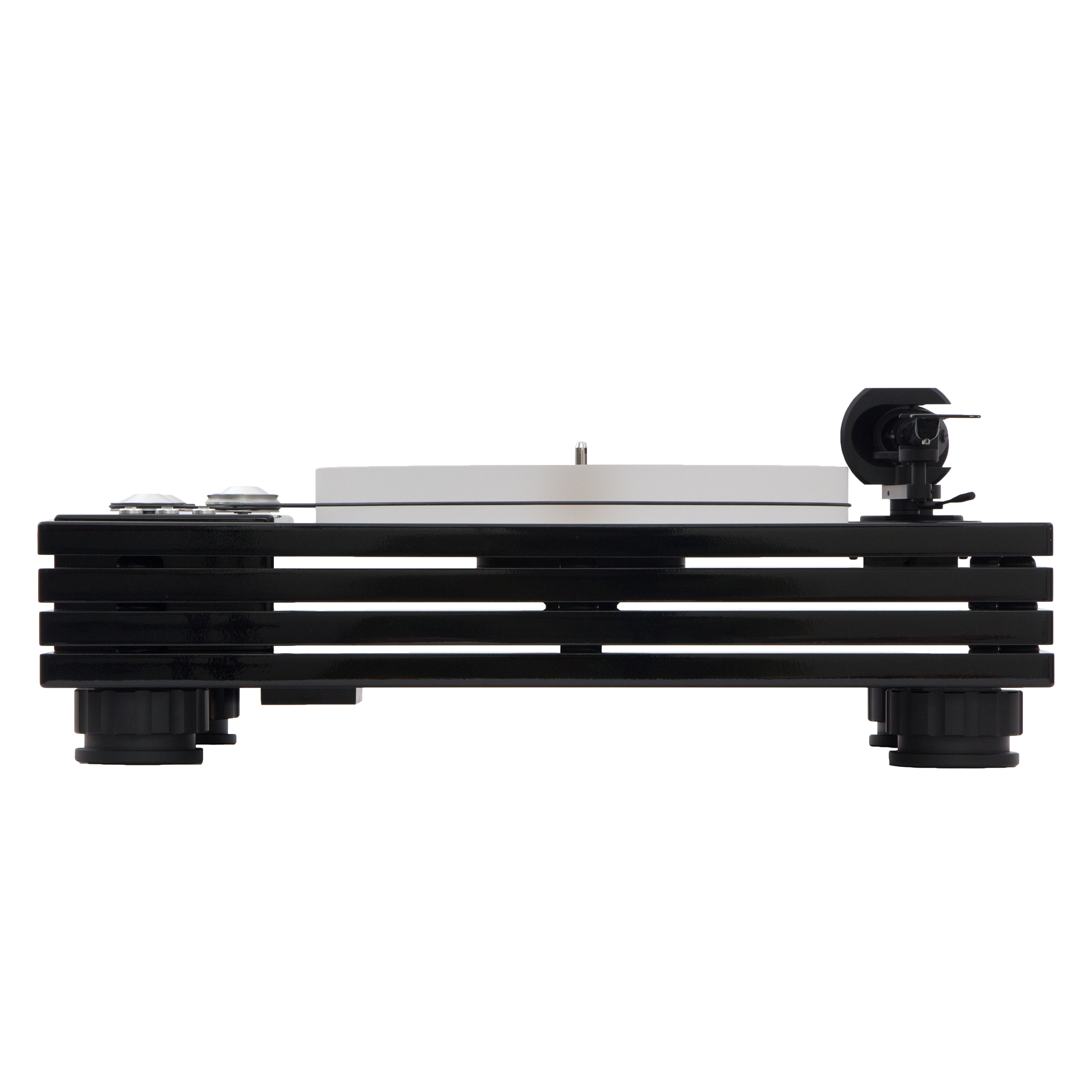

The music hall mmf-11.1 turntable, our latest flagship, is a 2-speed belt-driven audiophile turntable, featuring the unique quadruple-plinth construction originated by music hall.
The distinctive design isolates the critical sound reproducing components, each on their own plinth. The tonearm is mounted to the upper plinth and the inverted ceramic main bearing is mounted to the second plinth allowing the partially sunken 1 1/2″ acrylic platter to spin freely.
Moving the main bearing to the second plinth improved cartridge tracking and significantly lowered background noise. The adjustable magnetic-levitation isolation feet, microprocessor speed control, motors, flywheel, and wiring are all mounted to the bottom plinth. The motors, flywheel, and speed control are further isolated on their own vibration damped dual-plinth platform, which is separately isolated from the upper three main plinths.
Sorbothane hemispheres separate each of the three main plinths and provide additional vibration damping. The bottom plinth functions as a mass-loaded resonant sink for the entire turntable. Two motors and a flywheel are used to increase torque and speed stability. The mmf-11.1 comes in a high-gloss piano black lacquer finish and ships without cartridge. A large encapsulating acrylic dustcover is included.
- music hall’s unique quadruple-plinth design w/sorbothane vibration isolation
- one-piece Project ‘9cc Evolution’ carbon fiber tonearm
- the arm uses four hardened Swiss ABEC 7 ball races in an inverted bearing design
- tonearm is internally wired with flexible wire drawn from high purity copper with only two contact points from cartridge to output connectors
- counterweight’s center of gravity is level with the stylus tip is decoupled from the arm and acts as a resonance damper
- fully adjustable azimuth, VTA, and dampened arm lift
- exclusive microprocessor electronic speed controlled dual motor single flywheel drive system
- 33 1⁄3 and 45 rpm speed change at the touch of button
- motors and flywheel assembly are isolated on mass loaded resonant sink connected to the lower plinth
- the dual motor flywheel system sits on the left side of the turntable thus eliminating all motor and belt vibration from the cartridge
- magnetic-levitation adjustable isolation feet
- inverted ceramic main bearing for super quiet fluid operation
- thick acrylic platter
- removable acrylic dustcover
- high quality, gold RCA connectors with detachable phono cable
- low noise fully manual belt-drive design, dustcover, 45rpm adaptor
- ships securely in a substantial wood box
- excellent instruction manual and easy assembly
speed of turntable: 33 1/3 or 45 r.p.m. change speed electronically, luminous buttons deviation speed < ±0.1% variance speed < ±0.08% mechanical distance > -45dB electrical distance > -65dB drive silicone belt over pulley motor 2 x synchronous motors; the motor is controlled via microprocessor platter acrylic (11.8 in., 300 mm) weight – (7.4lbs., 3.35 kg) power switching power supply (90 – 246 VAC, 47-63Hz) type EU, UK,USA electric input 23W DC effective arm length 9in. (230 mm) effective arm mass 8.5 g mounting distance 8.3 in (212 mm) overlap .71 in (18 mm) angle crank 24° course zero error angle ø 130.5, ø 243.7 force on the tip 0-3 g plinth material MDF belt material silicone rubber product dimensions 21.3″ x 13.8″ x 7.8″
(540 x 350 x 197 mm)
39.5 lbs. (17.9 kg)
The Music Hall MMF 11.1 is the company’s most expensive turntable and based on the ones I’ve heard (many of them) also their best. …The 11.1 produced an ideal balance of detail, dimensionality and smoothness that kept me up all night …Overall sonic picture was free of obvious tonal or transient affects, which made long term listening ultra-pleasant.
We had the MMF-11 balanced and playing in less than an hour. Even with headphones, it’s the most sparkling, accurate turntable we’ve ever used. And vibrations in our wood-floored testing space never fazed the 39.5-pound unit. This is audiophile bliss.
